1500 Ton YZ32 Series Powder Forming Hydraulic Press Machine For
Refractory Products
Features
1. Hydraulic machine that used the hydrostatic pressure to process
metal, plastic, rubber, wood, powder and other products .
2. It is commonly used in the pressing process and press forming
process, such as: forging, stamping, cold extrusion, straightening,
bending, flanging, sheet metal deep drawing, powder metallurgy,
press-fit etc.
3. Significant technical and economic advantages in reducing
weight, reducing the number of parts and the number of molds,
improve the stiffness and strength, reduce production costs, etc.

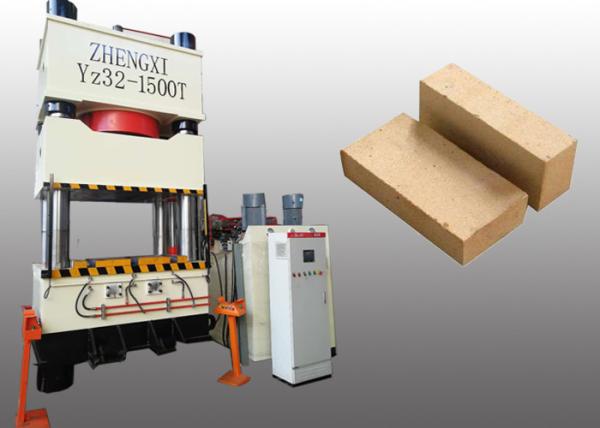

1500 Ton YZ32 Series Powder Forming Hydraulic Press Machine For
Refractory Products made by ZHENGXI
Optional accessories: moving bolster; slider proportional
adjustment and pressure regulating device; hydraulic pad
proportional pressure regulating device; punching buffer device;
light curtain safety protection device; oil heating or cooling
device; touch industrial display; Sensing device; floating guide
and rolling bracket for mold change; non-recoverable column
lubrication device; mold lighting.
Characteristics
It is characterized by computer finite element analysis and has
good rigidity and high precision.
Four-corner and eight-sided guide rails with high guiding precision
and strong anti-offset capability;
Imported material cylinder sealing components, high reliability and
long service life;
Empty, fast, and improve production efficiency;
The use of displacement sensors or non-contact switches improves
the reliability and accuracy of the stroke control;
Machine, electricity and liquid integrated safety device, equipped
with cylinder lower chamber support circuit, cylinder upper and
lower chamber interlocking circuit, etc., with superior safety
performance.
With PLC control, the work is sensitive and reliable, and the
flexibility is good.
Parameters of 1500 Ton YZ32 Series Powder Forming Hydraulic Press
Machine For Refractory Products
| Item | Unit | Value | Remarks |
|---|
1 | Name of Equipment |
| Hydraulic Deep Drawing Press |
2 | Structure |
| H Frame Type |
3 | Model Number |
| Yz32-1500T |
|
4 | Capacity | KN | 15000 KN |
|
5 | Slide Stroke | mm | 1200 |
|
6 | Daylight | mm | 2300 |
|
7 | Worktable | L-R | mm | 3600 |
|
F-B | mm | 2400 |
|
8 | Cushion Capacity | KN | 3000 |
|
9 | Cushion Stroke | mm | 0-400 |
|
10 | Cushion Size | L-R | mm | 2600 |
|
F-B | mm | 1400 |
|
11 | Cushion Eject Speed | mm/s | 50 |
|
12 | Cushion Return Speed | mm/s | 60 |
|
13 | Slide Speed | Idle Down | mm/s | 40-200 |
|
Press | mm/s | 3～15 | adjustable |
Return | mm/s | 40-200 |
