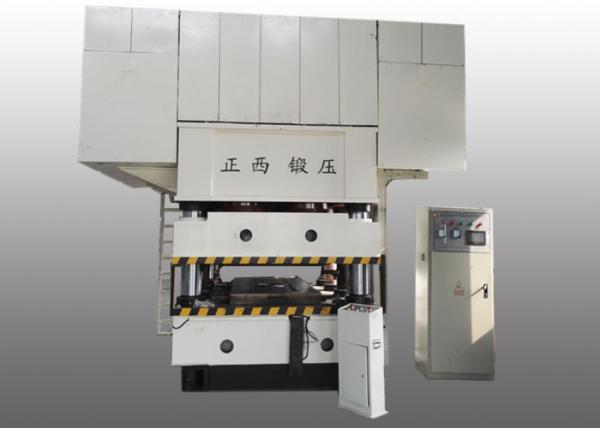

3500 Ton Door Embossing Machine Hydraulic Press Machine for Steel
Door Embossing
The hydraulic press machine of ZHENGXI Company is a hydraulic
machine for anti-theft door, steel door and interior door forming.
It is also suitable for the process of pressing, bending metal door
parts. It can also be used for calibration, press-fitting and
pressing of powder products. Forming and non-metallic materials
such as plastics, glass reinforced plastics, insulating materials
and abrasive products . This model is suitable for door embossing
and reverse convex processing, and can highlight the
three-dimensional effect of the workpiece.
Our ZHENGXI company mainly supply 2000 Ton door embossing machine,
3500 Ton hydraulic door embossing machine, 4000 Ton metal door
embossing machine.
Application
The use of security door is now more and more widely, because its
role is very large. Once there have security door and less a lot of
home theft. Do not underestimate the role that a door can play for
you and your family, Especially when we are talking about the topic
of household safety. Please spend huge sums of money before the
house is also bound to think about the importance of this security
door. Our metal door embossing machine can make all kinds of
decoration patterns metal door, not only beautiful but also durable.
Features
This eight-column hydraulic press is optimized by computer. The
eight-column structure is simple, economical and practical. The
frame-type structure has good rigidity, high precision and strong
anti-offset capability. The hydraulic control system adopts a
plug-in integrated system with reliable operation. Long service
life, small hydraulic impact, reduced connection pipeline and
leakage point; adopts imported PLC-controlled electrical system,
compact structure, sensitive and reliable work, convenient to use
and maintain. It has three operation modes: adjustment, manual and
semi-automatic operation, and constant pressure and two molding
process specifications. The bottom beam is equipped with a
hydraulic pad, which can be selected through the operation panel.
The hydraulic pad can realize three working cycles: ejection, no
ejection and hydraulic pressure.
Parameters
No | Name | Parameter |
1 | Model | Yz33-3500T |
2 | Nominal force | 35000KN |
3 | Ejection force | 12000KN |
4 | Press plate material | Steel |
5 | Stroke | 400mm |
6 | Daylight | 500mm |
7 | Main Cylinder qty | 6 |
8 | Main Cylinder diameter | Ø 450mm |
9 | Ejection stroke | 400mm |
10 | Motor power | 90Kw |
11 | Hydraulic working oil | Mineral Oil |
12 | Working pressure of hydraulics, kg / cm² | 250 |
13 | Maximum speed plate lifting | 100 mm/sec |
14 | Plate closing speed | 80-120mm/sec |
15 | Plate working speed | 15mm/sec |
16 | Worktable size | L-R | 1600mm |
F-B | 2600mm |
