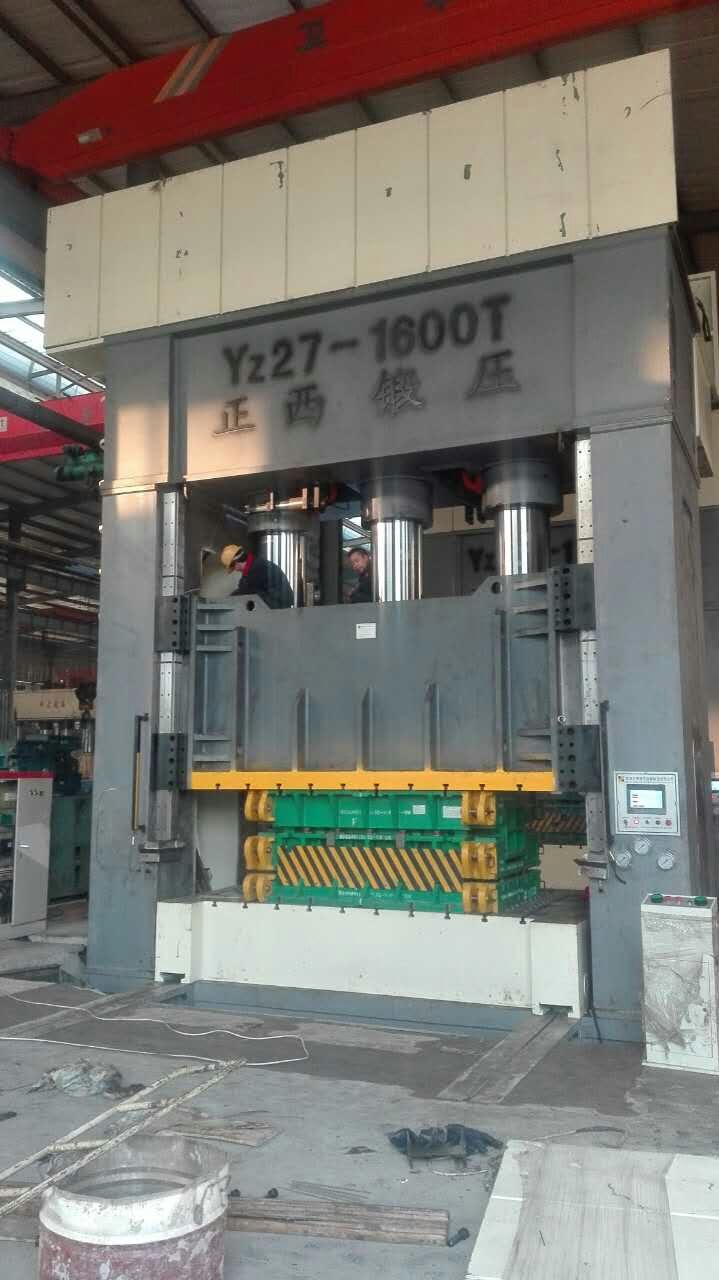

YZ27 1600 Ton Series Automobile Parts Making Sheet Metal Deep Drawing Hydraulic Press Machine

Stamping processing is the production technology of product parts with certain shape, size and performance by means of the power of conventional or special stamping equipment, which directly deforms and deforms the sheet in the mold. Sheets, molds and equipment are the three elements of stamping. Stamping is a method of cold deformation of metal. Therefore, it is called cold stamping or sheet stamping, referred to as stamping. It is one of the main methods of metal plastic processing (or pressure processing) and is also part of material forming engineering technology. The mold used for stampings is called a stamping die, or a die for short. Dies are special tools for batch processing materials (metal or non-metal) into the required punches. Dies are essential in stamping. There are no dies that meet the requirements. Batch stamping production is difficult to carry out; without advanced dies, advanced stamping processes cannot be achieved. The stamping process and the die, stamping equipment and stamping materials constitute the three elements of the stamping process, and only when they are combined with each other can the stamped parts be obtained.

This series of frame-type single-action thin-plate deep drawing hydraulic press fully absorbs the product advantages of the major manufacturers at home and abroad and the essence of imported technology products in the structural design. The whole machine has been optimized by finite element design of the computer, which has formed the overall performance of the press. Unique product design style with practical, durable, high stiffness and high reliability. 1600 Ton YZ27 Series Sheet Metal Deep Drawing Hydraulic Press Machine Automobile Parts Making

Application

The deep drawing hydraulic press is suitable for all stamping processes such as drawing, blanking and flanging, especially for the following fields:

• Auto parts: body cover, brake pads, fuel tank, chassis, axle housing, bumper;

• Household appliances: washing parts, rice cooker parts, TV parts, refrigerator parts, etc.;

• Kitchen utensils: washing tanks, pots, stainless steel appliances, and other various containers;

• Other: tractors, motorcycles, aerospace, aviation.

Features

• It is characterized by computer finite element analysis and has good rigidity and high precision.

• Four-corner and eight-sided guide rails with high guiding precision and strong anti-offset capability;

• Imported material cylinder sealing components, high reliability and long service life;

• Empty, fast, and improve production efficiency;

• The use of displacement sensors or non-contact switches improves the reliability and accuracy of the stroke control;

• Machine, electricity and liquid integrated safety device, equipped with cylinder lower chamber support circuit, cylinder upper and lower chamber interlocking circuit, etc., with superior safety performance.

• With PLC control, the work is sensitive and reliable, and the flexibility is good.

Parameters

Chengdu Zhengxi Hydraulic Equipment Manufacturing Co., Ltd. was founded in 2009 with a registered capital of 30 million yuan. It is a company integrating research, design, manufacture and sales of hydraulic equipment. The company is located in the "land of abundance" "the hometown of panda" Chengdu. The factory covers an area of about 75 acres. It has always been known for producing high-precision, high-quality hydraulic presses, and has established a good reputation and credit in the domestic and foreign industries. The factory has more than 70 sets of finishing equipment, including Japan's Mitsubishi floor-standing composite boring machine, imported heavy-duty lathes, large vertical vehicles and other processing equipment. Ultrasonic flaw detector, hardness tester, spectrometer imported dynamic balance machine and other testing equipment, to ensure that every process in the production process is improved. The main product series include: 100-16000 tons of molding presses; 100-20000 tons of metal drawing (stamping) forming hydraulic presses. Products are widely used in automotive, aerospace, high-speed rail, shipbuilding, power, bathroom and other industries, providing key equipment and advanced technical support for a number of important industries.
