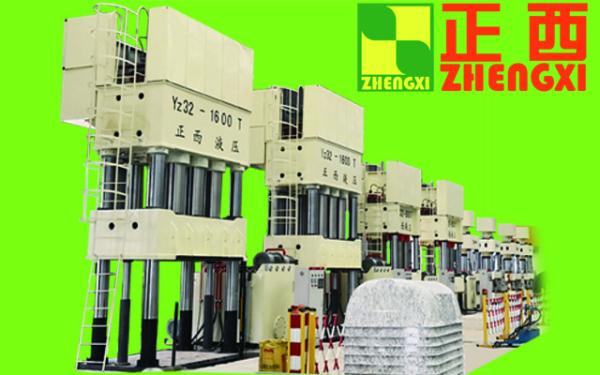

SMC Hydraulic Press Machine For Sheet Molding Compounds Forming
Composition
SMC and BMC, as well as derivatives which include: TMC (Thick
Moulding Compound), HPC (High Performance Compound) CIC (Continuous
Impregnation Compounds) and AMC (Advanced Moulding Compounds) are
all fibre reinforced composite materials which primarily consist of
a thermosetting resin matrix (normally UP -unsaturated polyester),
reinforcement (normally glassfibre) and inorganic filler.
Company composite molding equipment performance characteristics
- Nominal force: up to 5000 tons
- Countertop: Maximum 5000mm
- Slider stroke: up to 4500mm
- The slider has a maximum fast return speed: 800mm/S
- Slider minimum mold opening speed: 0.1mm/S
- Pressure holding accuracy: 0.8MPa/hour per hour (no pressure
compensation)
- Touch screen plus PLC control system, bus control system
- The four-corner leveling system meets the high-precision
requirements for large-area thin-walled parts, and the leveling
accuracy is ±0.05m.
- The hydraulic system uses a piston accumulator, which is 40-60%
lower than that of a conventional press.
- Complete press mechanical locking safety system and electronic
control interlock system.
Company composite molding equipment performance characteristics
LFT-D long fiber reinforced thermoplastic directly inline molding
- The micro-opening technology of proportional servo is adopted, and
the minimum height of stable mold opening can reach 0.1mm.
- Adopting the unique fast and slow flexible switching technology,
the slider fast and slow conversion realizes the no-flow breakpoint
switching, and the safety of the slider operation is greatly
improved.
- The key parts are sealed by radial sealing, and the oil leakage of
the press is effectively controlled.
- The thermoplastic composite production line has a complete set of
supply capabilities for material processing, molding processes,
molds and automated full-line bus control integration.
Applications
Electrical & Electronics
(mechanical integrity and electrical insulation)
Low voltage and medium voltage energy systems Fuses and switchgear
Cabinets and junction boxes Motor and anchor insulations
Encapsulation of wiring and electronic circuits Electrical
components with reduced surface resistivity Lamp housings
Mass Transportation
(light weight and fire resistance)
Train, tram interior and body parts Electrical components
Track switch components
Under the hood components for trucks
Automotive & Truck
(low fuel emissions through weight reduction)
Light weight body panels for vehicles
Lighting systems, headlamp reflectors and LED lighting Structural
parts, front ends, interior dashboard parts body panels for trucks
and agricultural vehicles
Building & Construction (durability and design freedom)
Drinking water tanks Panels
Doors
Building supply systems Drain and trench covers Access chambers
